Material
GJL 300.
Version
Support and mounting surfaces precision machined
Show more
Show less
Description
Material
GJL 300.
Version
Support and mounting surfaces precision machined
Note

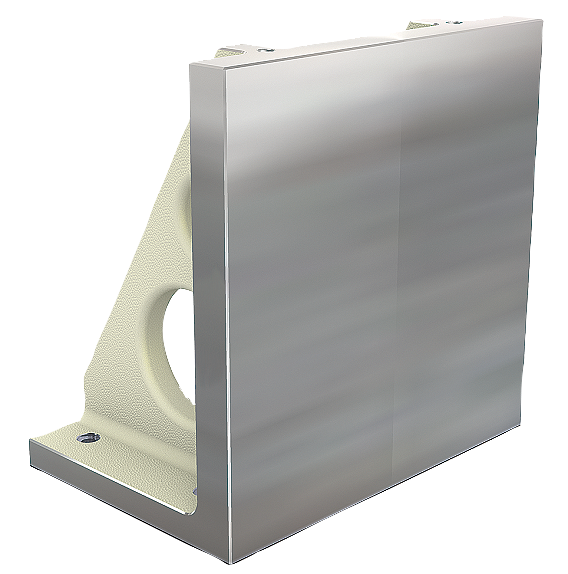

Angle plates are used for the vertical positioning and mounting of workpieces and fixtures. Angle plates with pre-machined clamping faces provide a quick and economic method of producing a base with specific grid or individual holes.
Ring bolts for hoisting are supplied.
Ring bolts for hoisting are supplied.
Drawing reference
1) hole for DIN 912 cap screw
