{"product":{"productId":"agid.2357","price":1735.58,"name":"Wedge supports"},"currency":"PLN"}
Material
Carbon steel and ductile iron.
Version
Tempered and black oxidised.
Wedge faces fine machined.
Wedge faces fine machined.
Show more
Show less
Description
Material
Carbon steel and ductile iron.
Version
Tempered and black oxidised.
Wedge faces fine machined.
Wedge faces fine machined.
Note

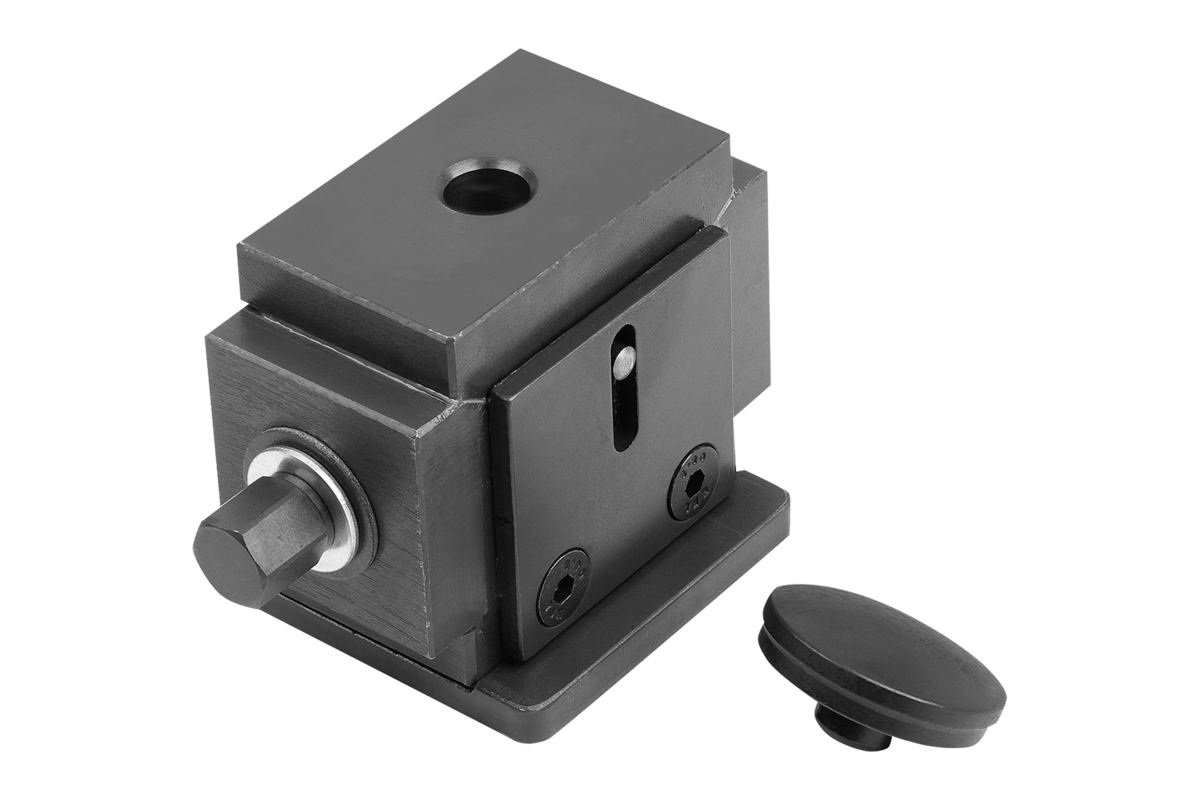

Fine adjustment by knurled screw or Allen key. Therefore vertical movement without lateral displacement. Especially suitable for marking or machining heavy parts. Ball handle 02210-01 is added to each height wedge.
H min is reached by removing the baseplate.
H min is reached by removing the baseplate.
Drawing reference
1) centring hole for 02210
