Material
Cam screw carbon steel.
Hex washer brass.
Hex washer brass.
Version
Cam screw tempered to 10.9 and black oxidised.
Show more
Show less
Description
Material
Cam screw carbon steel.
Hex washer brass.
Hex washer brass.
Version
Cam screw tempered to 10.9 and black oxidised.
Note
Also called fixture clamps.

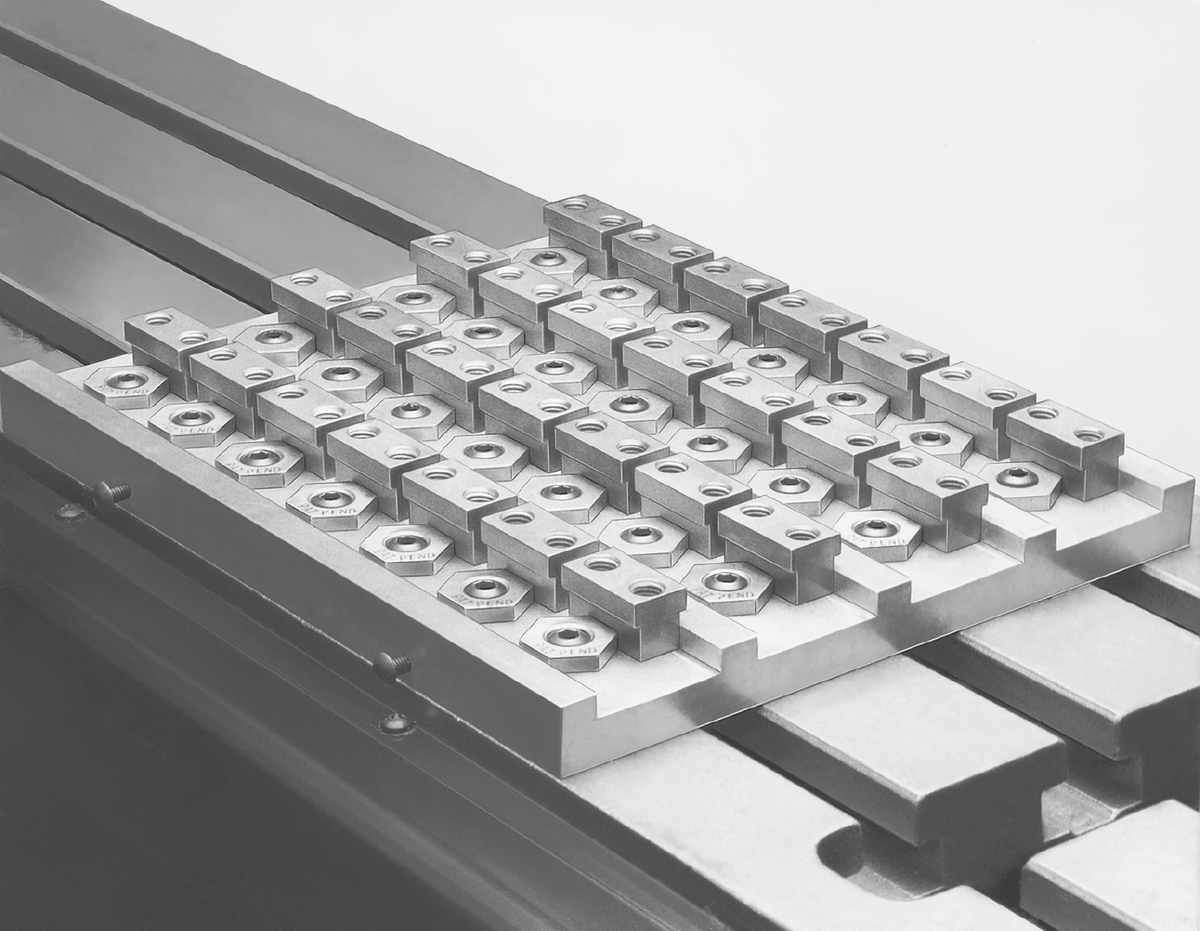

The minimal height of this fixture clamp allows numerous clamping problems in fixture and equipment construction to be solved. The brass hex washer offers a gentle yet extremely stable and safe clamping of workpieces. By using several fixture clamps entire pallets can be set-up.

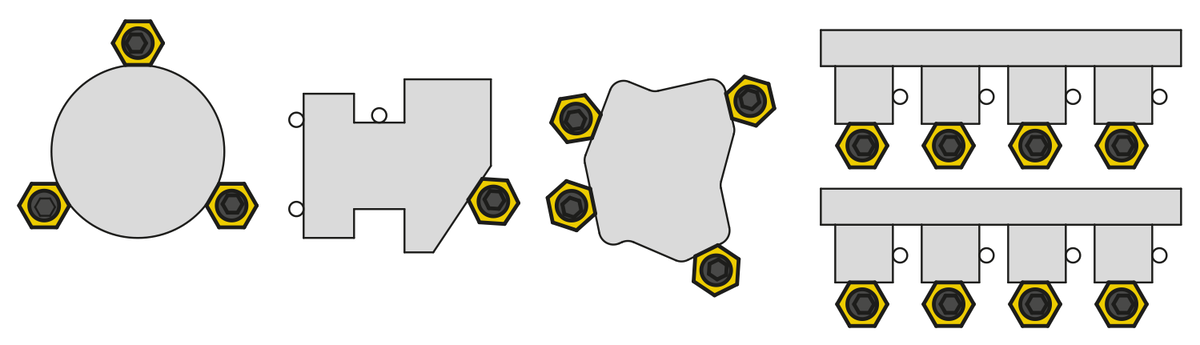

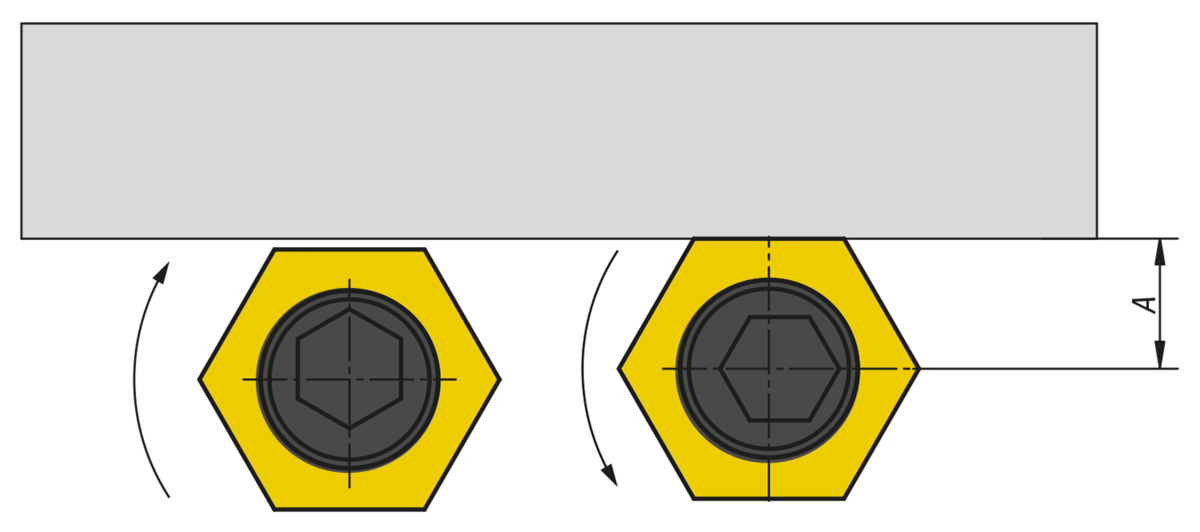

“A” = distance from workpiece to screw centre
(cam screw).
The minimal height of this fixture clamp allows numerous clamping problems in fixture and equipment construction to be solved. The brass hex washer offers a gentle yet extremely stable and safe clamping of workpieces. By using several fixture clamps entire pallets can be set-up.
“A” = distance from workpiece to screw centre
(cam screw).
On request
Replacement cam screws.
