Material
Thermoset PF 31, black or red.
Bush electro zinc-plated steel.
Bush electro zinc-plated steel.
Version
High-gloss polished.
Show more
Show less

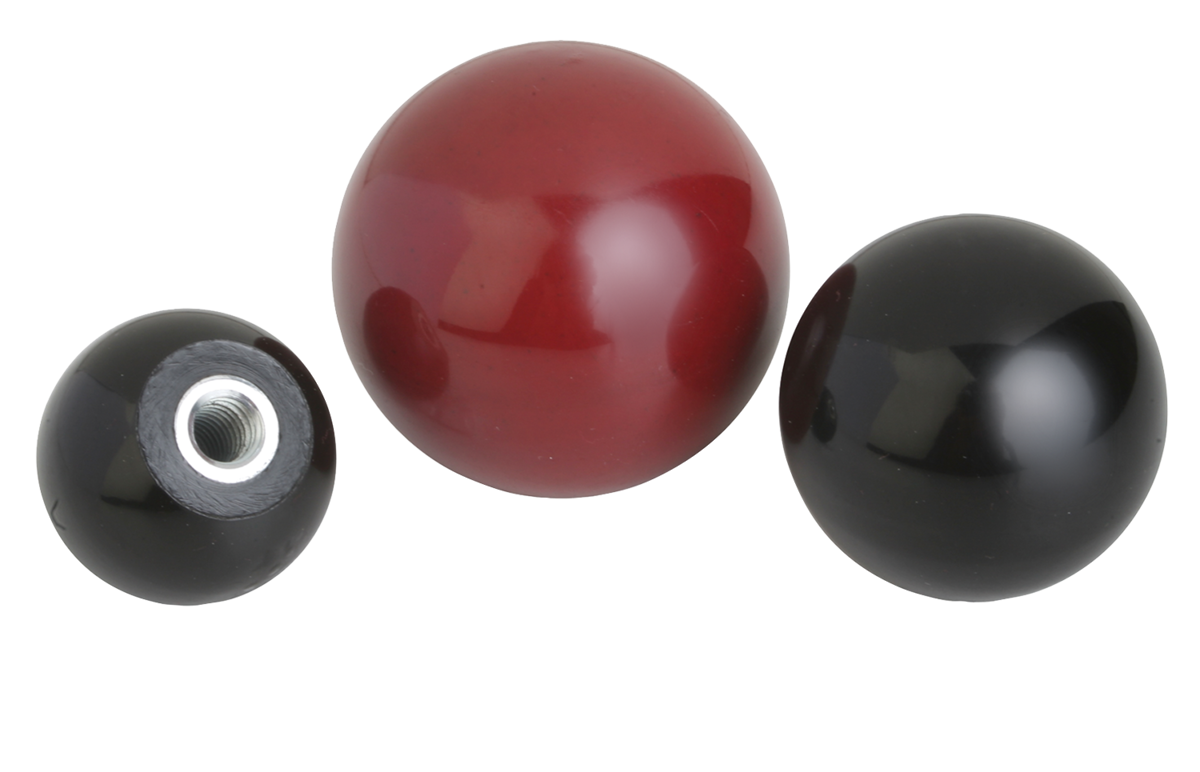

Ball knobs smooth DIN 319 enhanced, Form C, with molded thread
from
PLN1.92
plus sales tax
plus shipping costs
Ball knobs smooth DIN 319 enhanced, Form E, with tapped bush
from
PLN2.65
plus sales tax
plus shipping costs
Ball knobs smooth DIN 319 enhanced, Form L, with clamping sleeve
from
PLN6.83
plus sales tax
plus shipping costs
Ball knobs smooth DIN 319 enhanced, Form M, with tapered bore
from
PLN1.97
plus sales tax
plus shipping costs
Description
Material
Thermoset PF 31, black or red.
Bush electro zinc-plated steel.
Bush electro zinc-plated steel.
Version
High-gloss polished.
Assembly
Assembly Form L: The ball knobs are mounted firmly by tapping a hammer lightly. Please only use a rubber or plastic hammer, with a weight up to 200 g!
The version 06250-21604 has a brass bush.
The versions 06250-23008, 06250-230081, 06250-23508 and 06250-24008 have copper-plated steel bushes.
The version 06250-21604 has a brass bush.
The versions 06250-23008, 06250-230081, 06250-23508 and 06250-24008 have copper-plated steel bushes.
Shank tolerance
Ball knobs with press-fit sleeve can be mounted on standard shafts with tolerance h9. The supplied press-fit sleeve assures a firm and reliable fit.
Drawing reference
Form C: moulded thread
Form E: tapped bush
Form L: press-fit sleeve
Form M: tapered hole
Form E: tapped bush
Form L: press-fit sleeve
Form M: tapered hole
